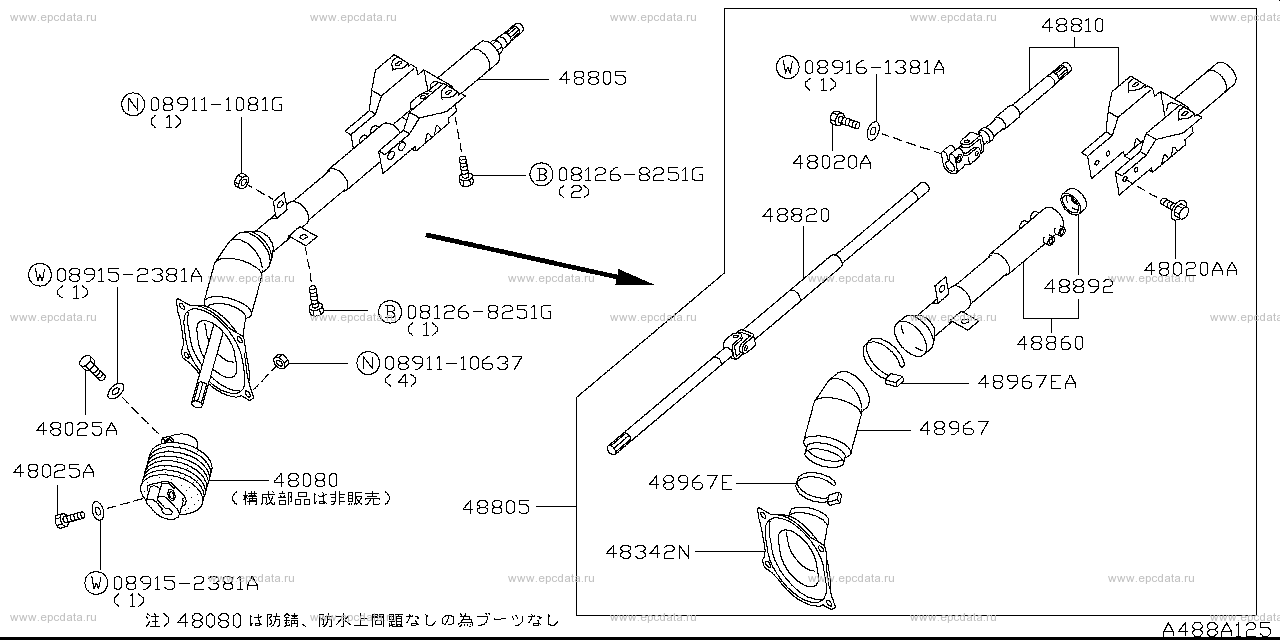

488 - steering column (chassis) for Nissan Vanette Serena KBNC23

	Frame / Series KBNC23 / C23 body W (wagon ) engine SR20DE (2000 gasoline twincam ) drive 4WD (four-wheel drive ) Manufacture period 05.1994 - 01.1997 grade RV/S (RV select ) transmission MT (manual transmission )

---

Applies for models	Manufacture period	Spec
GA16DS +GA16DE +SR20DE +CD20 +CD20T	08.1993 - 05.1994	チルト無し

Open full screen picture Up to the top

081268251G 0891110637 089111081G 089152381A 089161381A 48020A - bolt 48020AA - bolt 48025A - bolt 48080 - joint assembly, steering lower 48342N - cover, column hole 48805 - column assembly, steering 48810 - column assembly, steering upper 48820 - shaft assembly, steering column upper 48860 - tube assembly, jacket upper 48892 - cover, dust 48967 - cover, joint upper 48967E - clamp, cover 48967EA - clamp, cover

---

Applies for models	Manufacture period	Spec
GA16DS +GA16DE +SR20DE +CD20 +CD20T	08.1993 - 05.1994	チルト付き

Open full screen picture Up to the top

081268251G 0891110637 089111081G 089152381A 089161381A 48020A - bolt 48025A - bolt 48080 - joint assembly, steering lower 48342N - cover, column hole 48805 - column assembly, steering 48810 - column assembly, steering upper 48820 - shaft assembly, steering column upper 48892 - cover, dust 48967 - cover, joint upper 48967E - clamp, cover 48967EA - clamp, cover

---

Applies for models	Manufacture period	Spec
GA16DE +SR20DE +CD20 +CD20T	05.1994 - 08.1995	チルト無し
GA16DE +SR20DE +CD20 +CD20T	08.1995 - 01.1997	チルト無し

Open full screen picture Up to the top

081268301G 0891110637 089152381A 48020A - bolt 48025A - bolt 48035A - seal,O ring 48073C - washer, plain 48080 - joint assembly, steering lower 48342N - cover, column hole 48805 - column assembly, steering 48820 - shaft assembly, steering column upper 48820C - washer, plain 48820E - ring, snap 48860 - tube assembly, jacket upper 48967 - cover, joint upper 48967E - clamp, cover 48967EA - clamp, cover 48976 - nut, steering adjust

---

Applies for models	Manufacture period	Spec
GA16DE +SR20DE +CD20 +CD20T	05.1994 - 08.1995	チルト付き
GA16DE +SR20DE +CD20 +CD20T	08.1995 - 01.1997	チルト付き

Open full screen picture Up to the top

081268301G 0891110637 089152381A 48020A - bolt 48025A - bolt 48035A - seal,O ring 48078A - nut 48080 - joint assembly, steering lower 48342N - cover, column hole 48805 - column assembly, steering 48820 - shaft assembly, steering column upper 48820C - washer, plain 48820E - ring, snap 48860 - tube assembly, jacket upper 48967 - cover, joint upper 48967E - clamp, cover 48967EA - clamp, cover 48969E - spring 48970 - lever assembly, adjust steering column 48976 - nut, steering adjust

Vanette Serena KBNC23
